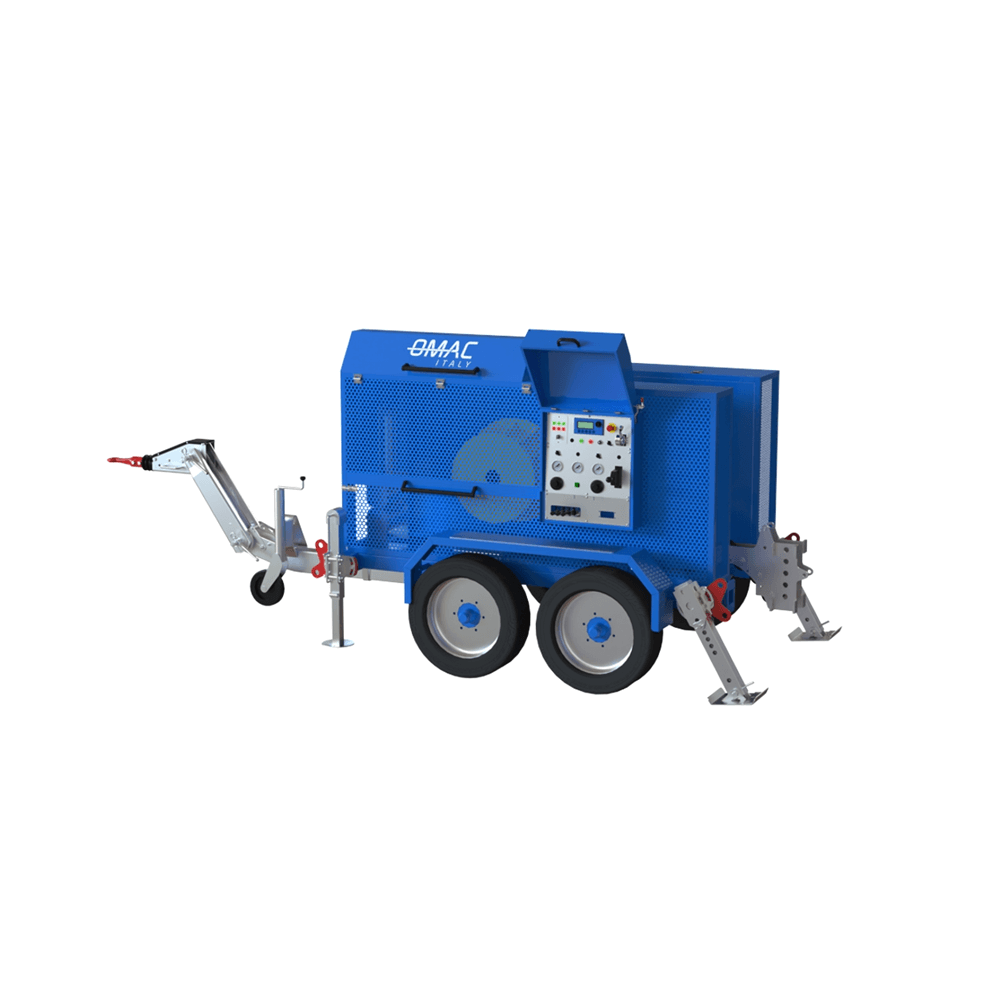

Cable puller 10 tons (100 kN) for removing and breaking cables – OMAC Italy UPR100

The unit is equipped with a single-circuit hydraulic drive system, which allows smooth speed adjustment in both directions – both from the control panel and via remote controls.

Capstan unit is made of a single block of solid steel are responsible for the 100 kN thrust. Their monolithic design guarantees maximum durability, load resistance, especially needed for high strenght used in pulling our / breaking underground energy cables.

As standard, the winch is equipped with:

• Lightweight and compact steel canopy with premium paint job and easy access to spare parts;
• Easy-to-use DEG 4.0 control panel along with smooth electronic control of retraction speed*;
• Strain gauge measurement of retraction force guaranteeing measurement accuracy of up to 1-3%;
• Hydraulic negative brake that stops the rope return to the winch. The rope guide roller is 360° adjustable;
• IP65 component protection. Machine additionally grounded with surge protection and emergency machine shutdown;
• 4-point anchorage point for anchoring and a central eye for lifting the machine;
• 4 fully galvanized, mechanically adjustable supports for seating the machine during operation. Rear supports with adjustable tilt angle;
• Temperature and hydraulic oil level indicator; enlarged oil cooler in the hydraulic circuit;
• System for easy service in 60 minutes. Stainless steel tool box;
• Homologated chassis (006.4) on shock absorbed axle including braking system, overrun brake and hand brake. Adjustable drawbar with support wheel, ball or eye hitch (optional);
• Rear beam has quick release.

Main functions of the DEG 4.0 control panel

Each machine produced by OMAC is equipped with an electronic DEG recorder with a USB port for recording all data as option 069.2 – this gives the user first and foremost:

• Display of pulling force, speed, and the ability to record the length of cable pulled in real time;

• Electronic maximum pulling force setting;

• Display of operating time, error notifications, and upcoming service;

• Data recording and storage on a portable USB memory stick, with the ability to connect a handheld printer.

It can also be equipped with OLS, which allows remote control of the machine, WI-FI connection, GPS Geolocation, fault detection system and more. More in the OLS tab.

Warranty

• Diesel engine: up to 5 years manufacturer’s warranty
• Hydraulic system: 2 years manufacturer’s warranty

Made according to the highest quality management standards of ISO 9001 and EC declaration of conformity (CE mark)

OPTIONAL EQUIPMENT

005.2 Chassis with tandem damped axle, overrun brake and drawbar for towing on road (homologation excluded)
011.4 Auxiliary hydraulic circuit.. Complete with N° 3 outputs for feeding a hydraulic cutter, a water pump and a hydraulic cylinder for the boom. Flow rate = 25 I/min – Working Pressure = 200 bar
037.2 Remote control by cable. Complete with electric joystick to control the pulling direction and potentiometer for speed adjustment. Cable length = 10 m
038.1 Radio remote control. Complete with display and 5 m long back-up cable
067 Telescopic boom to recover the cable. Complete with upper and lower roller quadrant
068.3 Support complete with chain-hoist. Fit for lifting and lowering the telescopic boom (Opt. 067)
069.2 Electronic instrument DEG 4.0. Featuring a large graphic color display and a USB port to record the working parameters
069.5 Printer with accessories
